3 Axis CNC
Features
1 Thicker square tube bed makes the operation more stable and accuracy.
2 Our machines adopt the vacuum or T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.
3 High quality Taiwan imported Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
4 3KW top brand water cooling spindlehas much powerful strength; So for processing your softmetal it will have higher efficiency.It will have a better effect .
5 the Mach3 control system is a very popular control system with high quality. Its with USB port.
6 Double motor for Y axis make the cnc machine work with more strength ;

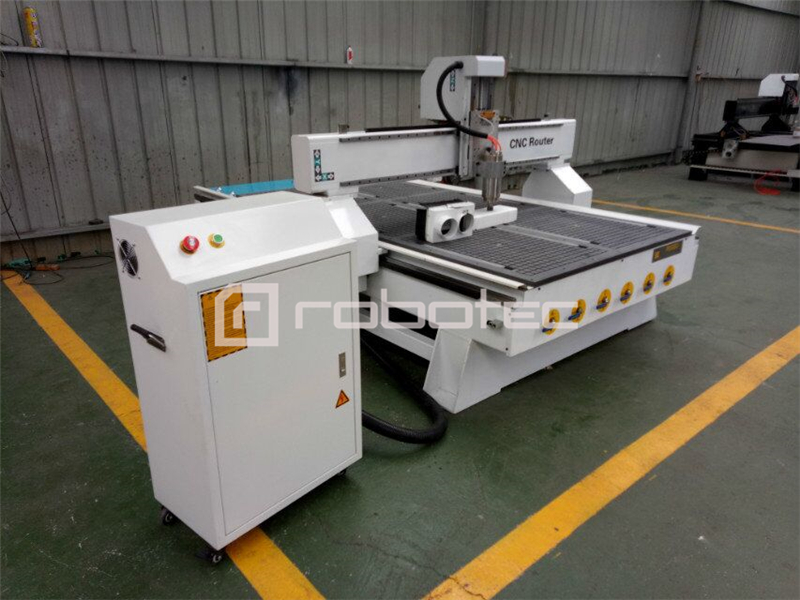

| Model | RTM-1325 cnc router |
| Working Area | 1300*2500*200mm/1500*3000*200mm |
| Traveling Positioning Accuracy | ±0.03/300mm |
| Repositioning Accuracy | ±0.01mm |
| Table | vacuum or T-slot Table |
| Frame | Welded Structure |
| Z Structure | Taiwan TBI ball screw |
| X, Y axis | Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 0-24000RPM |
| Drive Motors | stepper or servo motor |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP / NC-STUDIO / Mach3 controller |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9/Artcam Software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
>>Standard Configuration:
1) DSP control system: Popular and easy operation, with USB port to transfer program;
2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;
3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
>>Applied Industries
1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
![B(R[)}ZOR%AR542{WCS1]9.jpg](/uploads/allimg/181117/121PSZ5-3.jpg)
1. Service before order: our salesman will try to know more about your demands , including the max working size, main processing materials and the thickness , so we will offer you suit machine.
2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.
3.Service before shipping : the machine parts will be installed and tested by our professional.
technician, send the test video according to customer’s processing materials for customer confirmations.
4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up
5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.
6.Service of warranty : we guarantee the machine for 1.5 Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
